KF38減速機詳細信息

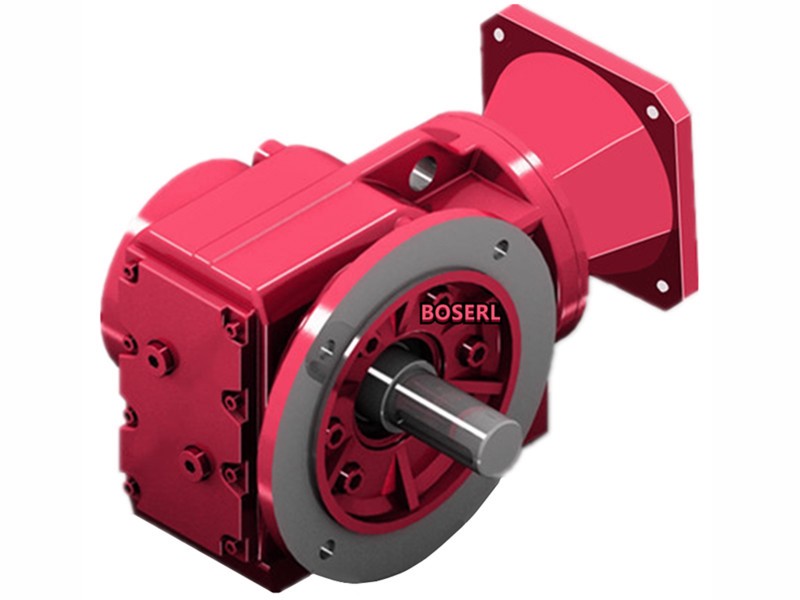

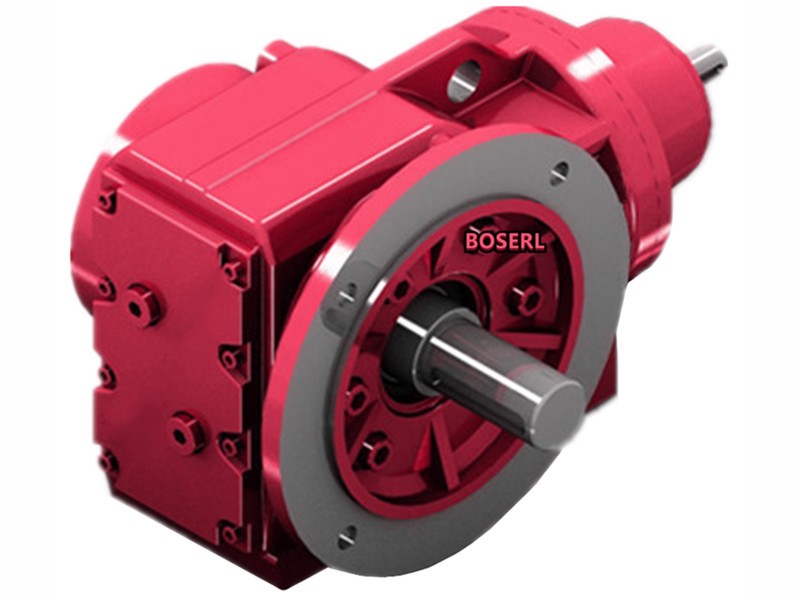

KF38減速機
訂購熱線：13360667204
KF38減速機選型計算：齒輪減速馬達
泥狀攪拌罐參數：攪動0.19噸泥狀物料，每分鐘攪動157圈，攪動葉輪直徑48
電機轉數1400÷157圈（輸出轉速）=減速比8.92
攪拌0.19噸泥狀物料=1862N
1862N×0.024攪動葉輪半徑=44.688×3攪拌泥狀物料扭矩放大三倍=133.064N.m
133.064N.m÷8.92減速比=14.92N.m電機扭矩
14.92N.m電機扭矩?fù)Q算成功率2.37KW以上
對應的KF38減速機選型參數：
型號：KF38-BEJ3KW
減速比：8.91
輸出轉數：163轉每分鐘
輸出扭矩：176N.m
安全系數：0.9
KF38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機
KF38傘齒輪減速機型號：
KF38系列減速機參數大全：直角減速機
KF38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.12KW | 106.38 | 0.12kw | 16kg | 6500N |
| K37Y0.12KW | 97.81 | 0.12kw | 16kg | 6530N |
| K37Y0.12KW | 83.69 | 0.12kw | 16kg | 6570N |
| K37Y0.12KW | 72.54 | 0.12kw | 16kg | 6600N |
| K37Y0.12KW | 67.8 | 0.12kw | 16kg | 6610N |
| K37Y0.12KW | 58.6 | 0.12kw | 16kg | 6430N |
| K37Y0.12KW | 49.79 | 0.12kw | 16kg | 6130N |
| K37Y0.12KW | 44.46 | 0.12kw | 16kg | 5930N |
| K37Y0.12KW | 37.97 | 0.12kw | 16kg | 5660N |
| K37Y0.12KW | 35.57 | 0.12kw | 16kg | 5550N |
| K37Y0.12KW | 29.96 | 0.12kw | 16kg | 5270N |
| K37Y0.12KW | 28.83 | 0.12kw | 16kg | 5200N |
| K37Y0.12KW | 24.99 | 0.12kw | 16kg | 4980N |
| K37Y0.12KW | 23.36 | 0.12kw | 16kg | 4880N |
| K37Y0.12KW | 20.19 | 0.12kw | 16kg | 4660N |
| K37Y0.12KW | 17.15 | 0.12kw | 16kg | 4430N |
| K37Y0.12KW | 15.31 | 0.12kw | 16kg | 4280N |
| K37Y0.12KW | 13.08 | 0.12kw | 16kg | 4070N |
| K37Y0.12KW | 12.14 | 0.12kw | 16kg | 3970N |
KF38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.18KW | 106.38 | 0.18kw | 16kg | 6210N |
| K37Y0.18KW | 97.81 | 0.18kw | 16kg | 6280N |
| K37Y0.18KW | 83.69 | 0.18kw | 16kg | 6400N |
| K37Y0.18KW | 72.54 | 0.18kw | 16kg | 6470N |
| K37Y0.18KW | 67.8 | 0.18kw | 16kg | 6500N |
| K37Y0.18KW | 58.6 | 0.18kw | 16kg | 6280N |
| K37Y0.18KW | 49.79 | 0.18kw | 16kg | 6010N |
| K37Y0.18KW | 44.46 | 0.18kw | 16kg | 5830N |
| K37Y0.18KW | 37.97 | 0.18kw | 16kg | 5580N |
| K37Y0.18KW | 35.57 | 0.18kw | 16kg | 5480N |
| K37Y0.18KW | 29.96 | 0.18kw | 16kg | 5220N |
| K37Y0.18KW | 28.83 | 0.18kw | 16kg | 5160N |
| K37Y0.18KW | 24.99 | 0.18kw | 16kg | 4950N |
| K37Y0.18KW | 23.36 | 0.18kw | 16kg | 4850N |
| K37Y0.18KW | 20.19 | 0.18kw | 16kg | 4650N |
| K37Y0.18KW | 17.15 | 0.18kw | 16kg | 4430N |
| K37Y0.18KW | 15.31 | 0.18kw | 16kg | 4280N |
| K37Y0.18KW | 13.08 | 0.18kw | 16kg | 4080N |
| K37Y0.18KW | 12.14 | 0.18kw | 16kg | 3980N |
| K37Y0.18KW | 10.49 | 0.18kw | 16kg | 3810N |
| K37Y0.18KW | 8.91 | 0.18kw | 16kg | 3620N |
| K37Y0.18KW | 7.96 | 0.18kw | 16kg | 3490N |
KF38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.25KW | 106.38 | 0.25kw | 17kg | 5690N |
| K37Y0.25KW | 97.81 | 0.25kw | 17kg | 5860N |
| K37Y0.25KW | 83.69 | 0.25kw | 17kg | 6090N |
| K37Y0.25KW | 72.54 | 0.25kw | 17kg | 6240N |
| K37Y0.25KW | 67.8 | 0.25kw | 17kg | 6220N |
| K37Y0.25KW | 58.6 | 0.25kw | 17kg | 6030N |
| K37Y0.25KW | 49.79 | 0.25kw | 17kg | 5810N |
| K37Y0.25KW | 44.46 | 0.25kw | 17kg | 5650N |
| K37Y0.25KW | 37.97 | 0.25kw | 17kg | 5430N |
| K37Y0.25KW | 35.57 | 0.25kw | 17kg | 5340N |
| K37Y0.25KW | 29.96 | 0.25kw | 17kg | 5100N |
| K37Y0.25KW | 28.83 | 0.25kw | 17kg | 5050N |
| K37Y0.25KW | 24.99 | 0.25kw | 17kg | 4860N |
| K37Y0.25KW | 23.36 | 0.25kw | 17kg | 4770N |
| K37Y0.25KW | 20.19 | 0.25kw | 17kg | 4580N |
| K37Y0.25KW | 17.15 | 0.25kw | 17kg | 4370N |
| K37Y0.25KW | 15.31 | 0.25kw | 17kg | 4220N |
| K37Y0.25KW | 13.08 | 0.25kw | 17kg | 4030N |
| K37Y0.25KW | 12.14 | 0.25kw | 17kg | 3940N |
| K37Y0.25KW | 10.49 | 0.25kw | 17kg | 3780N |
| K37Y0.25KW | 8.91 | 0.25kw | 17kg | 3590N |
| K37Y0.25KW | 7.96 | 0.25kw | 17kg | 3470N |
| K37Y0.25KW | 6.8 | 0.25kw | 17kg | 3300N |
| K37Y0.25KW | 6.37 | 0.25kw | 17kg | 3240N |
KF38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.37KW | 97.81 | 0.37kw | 19kg | 2520N |
| K37Y0.37KW | 83.69 | 0.37kw | 19kg | 5470N |
| K37Y0.37KW | 72.54 | 0.37kw | 19kg | 5690N |
| K37Y0.37KW | 67.8 | 0.37kw | 19kg | 5630N |
| K37Y0.37KW | 58.6 | 0.37kw | 19kg | 5500N |
| K37Y0.37KW | 49.79 | 0.37kw | 19kg | 5350N |
| K37Y0.37KW | 44.46 | 0.37kw | 19kg | 5230N |
| K37Y0.37KW | 37.97 | 0.37kw | 19kg | 5060N |
| K37Y0.37KW | 35.57 | 0.37kw | 19kg | 4990N |
| K37Y0.37KW | 29.96 | 0.37kw | 19kg | 4800N |
| K37Y0.37KW | 28.83 | 0.37kw | 19kg | 4750N |
| K37Y0.37KW | 24.99 | 0.37kw | 19kg | 4590N |
| K37Y0.37KW | 23.36 | 0.37kw | 19kg | 4510N |
| K37Y0.37KW | 20.19 | 0.37kw | 19kg | 4350N |
| K37Y0.37KW | 17.15 | 0.37kw | 19kg | 4160N |
| K37Y0.37KW | 15.31 | 0.37kw | 19kg | 4040N |
| K37Y0.37KW | 13.08 | 0.37kw | 19kg | 3860N |
| K37Y0.37KW | 12.14 | 0.37kw | 19kg | 3780N |
| K37Y0.37KW | 10.49 | 0.37kw | 19kg | 3630N |
| K37Y0.37KW | 8.91 | 0.37kw | 19kg | 3460N |
| K37Y0.37KW | 7.96 | 0.37kw | 19kg | 3350N |
| K37Y0.37KW | 6.8 | 0.37kw | 19kg | 3190N |
| K37Y0.37KW | 6.37 | 0.37kw | 19kg | 3130N |
| K37Y0.37KW | 5.36 | 0.37kw | 19kg | 2970N |
KF38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.55KW | 58.6 | 0.55kw | 20kg | 4840N |
| K37Y0.55KW | 49.79 | 0.55kw | 20kg | 4780N |
| K37Y0.55KW | 44.46 | 0.55kw | 20kg | 4730N |
| K37Y0.55KW | 37.97 | 0.55kw | 20kg | 4630N |
| K37Y0.55KW | 35.57 | 0.55kw | 20kg | 4580N |
| K37Y0.55KW | 29.96 | 0.55kw | 20kg | 4460N |
| K37Y0.55KW | 28.83 | 0.55kw | 20kg | 4420N |
| K37Y0.55KW | 24.99 | 0.55kw | 20kg | 4310N |
| K37Y0.55KW | 23.36 | 0.55kw | 20kg | 4250N |
| K37Y0.55KW | 20.19 | 0.55kw | 20kg | 4120N |
| K37Y0.55KW | 17.15 | 0.55kw | 20kg | 3970N |
| K37Y0.55KW | 15.31 | 0.55kw | 20kg | 3860N |
| K37Y0.55KW | 13.08 | 0.55kw | 20kg | 3720N |
| K37Y0.55KW | 12.14 | 0.55kw | 20kg | 3650N |
| K37Y0.55KW | 10.49 | 0.55kw | 20kg | 3510N |
| K37Y0.55KW | 8.91 | 0.55kw | 20kg | 3360N |
| K37Y0.55KW | 7.96 | 0.55kw | 20kg | 3260N |
| K37Y0.55KW | 6.8 | 0.55kw | 20kg | 3120N |
| K37Y0.55KW | 6.37 | 0.55kw | 20kg | 3060N |
| K37Y0.55KW | 5.36 | 0.55kw | 20kg | 2910N |
| K37Y0.55KW | 3.98 | 0.55kw | 20kg | 2670N |
KF38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y0.75KW | 44.46 | 0.75KW | 22kg | 4170N |
| K37Y0.75KW | 37.97 | 0.75KW | 22kg | 4150N |
| K37Y0.75KW | 35.57 | 0.75KW | 22kg | 4130N |
| K37Y0.75KW | 29.96 | 0.75KW | 22kg | 4070N |
| K37Y0.75KW | 28.83 | 0.75KW | 22kg | 4050N |
| K37Y0.75KW | 24.99 | 0.75KW | 22kg | 3980N |
| K37Y0.75KW | 23.36 | 0.75KW | 22kg | 3940N |
| K37Y0.75KW | 20.19 | 0.75KW | 22kg | 3850N |
| K37Y0.75KW | 17.15 | 0.75KW | 22kg | 3740N |
| K37Y0.75KW | 15.31 | 0.75KW | 22kg | 3650N |
| K37Y0.75KW | 13.08 | 0.75KW | 22kg | 3530N |
| K37Y0.75KW | 12.14 | 0.75KW | 22kg | 3480N |
| K37Y0.75KW | 10.49 | 0.75KW | 22kg | 3360N |
| K37Y0.75KW | 8.91 | 0.75KW | 22kg | 3230N |
| K37Y0.75KW | 7.96 | 0.75KW | 22kg | 3140N |
| K37Y0.75KW | 6.8 | 0.75KW | 22kg | 3010N |
| K37Y0.75KW | 6.37 | 0.75KW | 22kg | 2960N |
| K37Y0.75KW | 5.36 | 0.75KW | 22kg | 2830N |
| K37Y0.75KW | 3.98 | 0.75KW | 22kg | 2600N |
KF38減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y1.1KW | 29.96 | 1.1KW | 25kg | 3420N |
| K37Y1.1KW | 24.99 | 1.1KW | 25kg | 3440N |
| K37Y1.1KW | 23.36 | 1.1KW | 25kg | 3440N |
| K37Y1.1KW | 20.19 | 1.1KW | 25kg | 3410N |
| K37Y1.1KW | 17.15 | 1.1KW | 25kg | 3370N |
| K37Y1.1KW | 15.31 | 1.1KW | 25kg | 3320N |
| K37Y1.1KW | 13.08 | 1.1KW | 25kg | 3250N |
| K37Y1.1KW | 12.14 | 1.1KW | 25kg | 3220N |
| K37Y1.1KW | 10.49 | 1.1KW | 25kg | 3140N |
| K37Y1.1KW | 8.91 | 1.1KW | 25kg | 3040N |
| K37Y1.1KW | 7.96 | 1.1KW | 25kg | 2970N |
| K37Y1.1KW | 6.8 | 1.1KW | 25kg | 2870N |
| K37Y1.1KW | 6.37 | 1.1KW | 25kg | 2820N |
| K37Y1.1KW | 5.36 | 1.1KW | 25kg | 2710N |
| K37Y1.1KW | 3.98 | 1.1KW | 25kg | 2510N |
KF38減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y1.5KW | 23.36 | 1.5KW | 29kg | 2860N |
| K37Y1.5KW | 20.19 | 1.5KW | 29kg | 2910N |
| K37Y1.5KW | 17.15 | 1.5KW | 29kg | 2940N |
| K37Y1.5KW | 15.31 | 1.5KW | 29kg | 2950N |
| K37Y1.5KW | 13.08 | 1.5KW | 29kg | 2930N |
| K37Y1.5KW | 12.14 | 1.5KW | 29kg | 2920N |
| K37Y1.5KW | 10.49 | 1.5KW | 29kg | 2880N |
| K37Y1.5KW | 8.91 | 1.5KW | 29kg | 2820N |
| K37Y1.5KW | 7.96 | 1.5KW | 29kg | 2780N |
| K37Y1.5KW | 6.8 | 1.5KW | 29kg | 2700N |
| K37Y1.5KW | 6.37 | 1.5KW | 29kg | 2670N |
| K37Y1.5KW | 5.36 | 1.5KW | 29kg | 2580N |
| K37Y1.5KW | 3.98 | 1.5KW | 29kg | 2420N |
KF38減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y2.2KW | 13.08 | 2.2KW | 31kg | 2360N |
| K37Y2.2KW | 10.49 | 2.2KW | 31kg | 2430N |
| K37Y2.2KW | 8.91 | 2.2KW | 31kg | 2440N |
| K37Y2.2KW | 7.96 | 2.2KW | 31kg | 2430N |
| K37Y2.2KW | 6.8 | 2.2KW | 31kg | 2410N |
| K37Y2.2KW | 6.37 | 2.2KW | 31kg | 2400N |
| K37Y2.2KW | 5.36 | 2.2KW | 31kg | 2350N |
| K37Y2.2KW | 3.98 | 2.2KW | 31kg | 2250N |
KF38減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K37Y3KW | 8.91 | 3KW | 37kg | 2000N |
| K37Y3KW | 7.96 | 3KW | 37kg | 2040N |
| K37Y3KW | 6.8 | 3KW | 37kg | 2080N |
| K37Y3KW | 6.37 | 3KW | 37kg | 2080N |
| K37Y3KW | 5.36 | 3KW | 37kg | 2090N |
| K37Y3KW | 3.98 | 3KW | 37kg | 2050N |
KF38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K38減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KF38減速機 KF37傘齒輪減速機 KF37系列減速機 KF37減速機傳動比 KF37減速機選型參數 KF37減速機CAD三維圖
