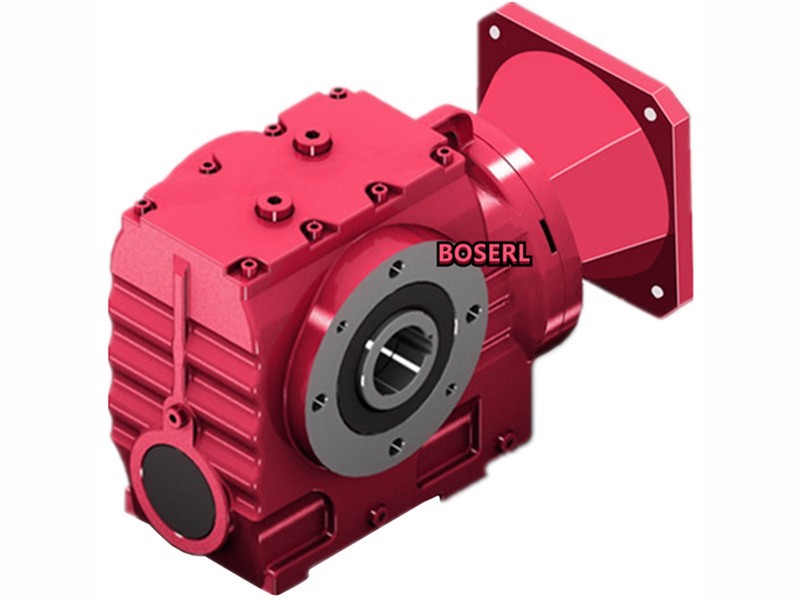

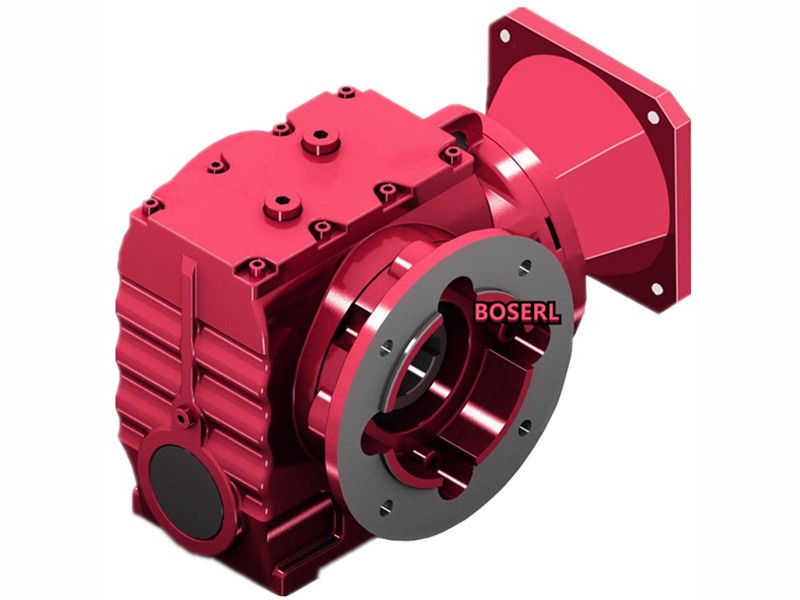

SA48減速機詳細信息
SA48減速機
訂購熱線：13360667204
SA48減速機傳動比計算：齒輪減速馬達
提升機參數：鏈輪直徑160，提升1300公斤，每分鐘提升60米
60米÷（0.16滾筒直徑X3.14）=119.43轉每分鐘
1300公斤換算成扭矩=1274N.m
1274N.m×0.08滾筒半徑=101.92N.m
電機轉數1400÷輸出轉數119.43=11.72比
101.92N.m輸出扭矩÷11.72比=8.7N.m電機扭矩
8.7N.m電機扭矩?fù)Q算成功率1.38KW以上
上下提升的提升機，我們通常建議用S系列自鎖減速機加剎車電機
對應的SA48減速機選型參數：
型號：SA48-BVP1.5KW
減速比：12.1
輸出轉數：118轉每分鐘
輸出扭矩：108N.m
安全系數：1
SA48減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機
SA48斜齒輪蝸輪減速機型號：
SA48系列減速機參數大全：自鎖減速機
SA48減速機配0.12KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.12KW | 201.00 | 0.12KW | 15.5kg | 5680N |
| S47Y0.12KW | 184.80 | 0.12KW | 15.5kg | 5700N |
| S47Y0.12KW | 158.12 | 0.12KW | 15.5kg | 5740N |
| S47Y0.12KW | 137.05 | 0.12KW | 15.5kg | 5780N |
| S47Y0.12KW | 128.10 | 0.12KW | 15.5kg | 5790N |
| S47Y0.12KW | 110.73 | 0.12KW | 15.5kg | 5810N |
SA48減速機配0.18KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.18KW | 201.00 | 0.18KW | 16kg | 5440N |
| S47Y0.18KW | 184.80 | 0.18KW | 16kg | 5490N |
| S47Y0.18KW | 158.12 | 0.18KW | 16kg | 5570N |
| S47Y0.18KW | 137.05 | 0.18KW | 16kg | 5630N |
| S47Y0.18KW | 128.10 | 0.18KW | 16kg | 5660N |
| S47Y0.18KW | 110.73 | 0.18KW | 16kg | 5700N |
| S47Y0.18KW | 94.08 | 0.18KW | 16kg | 5750N |
| S47Y0.18KW | 84.00 | 0.18KW | 16kg | 5770N |
| S47Y0.18KW | 71.75 | 0.18KW | 16kg | 5800N |
| S47Y0.18KW | 69.39 | 0.18KW | 16kg | 5750N |
SA48減速機配0.25KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.25KW | 201.00 | 0.25KW | 20kg | 5120N |
| S47Y0.25KW | 184.80 | 0.25KW | 20kg | 5210N |
| S47Y0.25KW | 158.12 | 0.25KW | 20kg | 5340N |
| S47Y0.25KW | 137.05 | 0.25KW | 20kg | 5440N |
| S47Y0.25KW | 128.10 | 0.25KW | 20kg | 5480N |
| S47Y0.25KW | 110.73 | 0.25KW | 20kg | 5560N |
| S47Y0.25KW | 94.08 | 0.25KW | 20kg | 5630N |
| S47Y0.25KW | 84.00 | 0.25KW | 20kg | 5670N |
| S47Y0.25KW | 71.75 | 0.25KW | 20kg | 5720N |
| S47Y0.25KW | 69.39 | 0.25KW | 20kg | 5640N |
| S47Y0.25KW | 67.20 | 0.25KW | 20kg | 5740N |
| S47Y0.25KW | 63.80 | 0.25KW | 20kg | 5670N |
| S47Y0.25KW | 54.59 | 0.25KW | 20kg | 5720N |
| S47Y0.25KW | 47.32 | 0.25KW | 20kg | 5760N |
SA48減速機配0.37KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.37KW | 137.05 | 0.37KW | 20.5kg | 5110N |
| S47Y0.37KW | 128.10 | 0.37KW | 20.5kg | 5180N |
| S47Y0.37KW | 110.73 | 0.37KW | 20.5kg | 5320N |
| S47Y0.37KW | 94.08 | 0.37KW | 20.5kg | 5430N |
| S47Y0.37KW | 84.00 | 0.37KW | 20.5kg | 5500N |
| S47Y0.37KW | 71.75 | 0.37KW | 20.5kg | 5580N |
| S47Y0.37KW | 69.39 | 0.37KW | 20.5kg | 5460N |
| S47Y0.37KW | 67.20 | 0.37KW | 20.5kg | 5610N |
| S47Y0.37KW | 63.80 | 0.37KW | 20.5kg | 5510N |
| S47Y0.37KW | 54.59 | 0.37KW | 20.5kg | 5590N |
| S47Y0.37KW | 47.32 | 0.37KW | 20.5kg | 5410N |
| S47Y0.37KW | 44.22 | 0.37KW | 20.5kg | 5330N |
| S47Y0.37KW | 38.23 | 0.37KW | 20.5kg | 5140N |
| S47Y0.37KW | 32.48 | 0.37KW | 20.5kg | 4930N |
| S47Y0.37KW | 29.00 | 0.37KW | 20.5kg | 4790N |
| S47Y0.37KW | 24.77 | 0.37KW | 20.5kg | 4590N |
| S47Y0.37KW | 23.20 | 0.37KW | 20.5kg | 4510N |
| S47Y0.37KW | 20.33 | 0.37KW | 20.5kg | 4180N |
| S47Y0.37KW | 17.62 | 0.37KW | 20.5kg | 4030N |
| S47Y0.37KW | 16.47 | 0.37KW | 20.5kg | 3960N |
SA48減速機配0.55KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.55KW | 84.00 | 0.55KW | 25kg | 5160N |
| S47Y0.55KW | 71.75 | 0.55KW | 25kg | 5310N |
| S47Y0.55KW | 67.20 | 0.55KW | 25kg | 5360N |
| S47Y0.55KW | 54.59 | 0.55KW | 25kg | 5120N |
| S47Y0.55KW | 47.32 | 0.55KW | 25kg | 5000N |
| S47Y0.55KW | 44.22 | 0.55KW | 25kg | 4940N |
| S47Y0.55KW | 38.23 | 0.55KW | 25kg | 4800N |
| S47Y0.55KW | 32.48 | 0.55KW | 25kg | 4640N |
| S47Y0.55KW | 29.00 | 0.55KW | 25kg | 4530N |
| S47Y0.55KW | 24.77 | 0.55KW | 25kg | 4360N |
| S47Y0.55KW | 23.20 | 0.55KW | 25kg | 4300N |
| S47Y0.55KW | 20.33 | 0.55KW | 25kg | 3910N |
| S47Y0.55KW | 17.62 | 0.55KW | 25kg | 3790N |
| S47Y0.55KW | 16.47 | 0.55KW | 25kg | 3740N |
| S47Y0.55KW | 14.24 | 0.55KW | 25kg | 3620N |
| S47Y0.55KW | 12.10 | 0.55KW | 25kg | 3480N |
| S47Y0.55KW | 10.80 | 0.55KW | 25kg | 3390N |
| S47Y0.55KW | 9.23 | 0.55KW | 25kg | 3260N |
SA48減速機配0.75KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.75KW | 47.32 | 0.75KW | 26kg | 4510N |
| S47Y0.75KW | 44.22 | 0.75KW | 26kg | 4480N |
| S47Y0.75KW | 38.23 | 0.75KW | 26kg | 4400N |
| S47Y0.75KW | 32.48 | 0.75KW | 26kg | 4290N |
| S47Y0.75KW | 29.00 | 0.75KW | 26kg | 4200N |
| S47Y0.75KW | 24.77 | 0.75KW | 26kg | 4080N |
| S47Y0.75KW | 23.20 | 0.75KW | 26kg | 4030N |
| S47Y0.75KW | 20.33 | 0.75KW | 26kg | 3590N |
| S47Y0.75KW | 17.62 | 0.75KW | 26kg | 3510N |
| S47Y0.75KW | 16.47 | 0.75KW | 26kg | 3470N |
| S47Y0.75KW | 14.24 | 0.75KW | 26kg | 3380N |
| S47Y0.75KW | 12.10 | 0.75KW | 26kg | 3280N |
| S47Y0.75KW | 10.80 | 0.75KW | 26kg | 3200N |
| S47Y0.75KW | 9.23 | 0.75KW | 26kg | 3090N |
| S47Y0.75KW | 8.64 | 0.75KW | 26kg | 3040N |
| S47Y0.75KW | 7.28 | 0.75KW | 26kg | 2920N |
SA48減速機配1.1KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y1.1KW | 29.00 | 1.1KW | 30kg | 3720N |
| S47Y1.1KW | 24.77 | 1.1KW | 30kg | 3660N |
| S47Y1.1KW | 23.20 | 1.1KW | 30kg | 3640N |
| S47Y1.1KW | 19.54 | 1.1KW | 30kg | 3560N |
| S47Y1.1KW | 17.62 | 1.1KW | 30kg | 3070N |
| S47Y1.1KW | 16.47 | 1.1KW | 30kg | 3060N |
| S47Y1.1KW | 14.24 | 1.1KW | 30kg | 3030N |
| S47Y1.1KW | 12.10 | 1.1KW | 30kg | 2980N |
| S47Y1.1KW | 10.80 | 1.1KW | 30kg | 2930N |
| S47Y1.1KW | 9.23 | 1.1KW | 30kg | 2860N |
| S47Y1.1KW | 8.64 | 1.1KW | 30kg | 2830N |
| S47Y1.1KW | 7.28 | 1.1KW | 30kg | 2740N |
SA48減速機配1.5KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y1.5KW | 14.24 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 12.10 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 10.80 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 9.24 | 1.5KW | 33kg | 2590N |
| S47Y1.5KW | 8.64 | 1.5KW | 33kg | 2580N |
| S47Y1.5KW | 7.28 | 1.5KW | 33kg | 2530N |
SA48減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S48減速機
關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SA48減速機 SA47斜齒輪蝸輪減速機 SA47系列減速機 SA47減速機傳動比 SA47減速機選型參數 SA47減速機CAD三維圖
