RXF78減速電機詳細信息
RXF78減速電機
訂購熱線：13360667204
RXF78減速電機功率計算公式：齒輪減速馬達
電動無軌小火車參數：輥輪直徑155，拖動4.9噸，一分鐘行駛37米
37米÷（0.155輥輪直徑X3.14）=76轉每分鐘
4.9噸換算成N=49000N
49000×0.0775輥輪半徑×0.3橡膠輪水泥路的摩擦系數=1139.25N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍1139.25×2=2278.5N.m
電機轉數1400÷輸出轉數76=18.42比
2278.5N.m輸出扭矩÷18.42比=123.7N.m電機扭矩
123.7N.m電機扭矩換算成功率11KW以上
對應的RXF78減速機型號參數：
型號：RXF78-BVPEJ11KW
減速比：18.42
輸出轉數：76轉每分鐘
輸出扭矩：2300N.m
安全系數：2.20

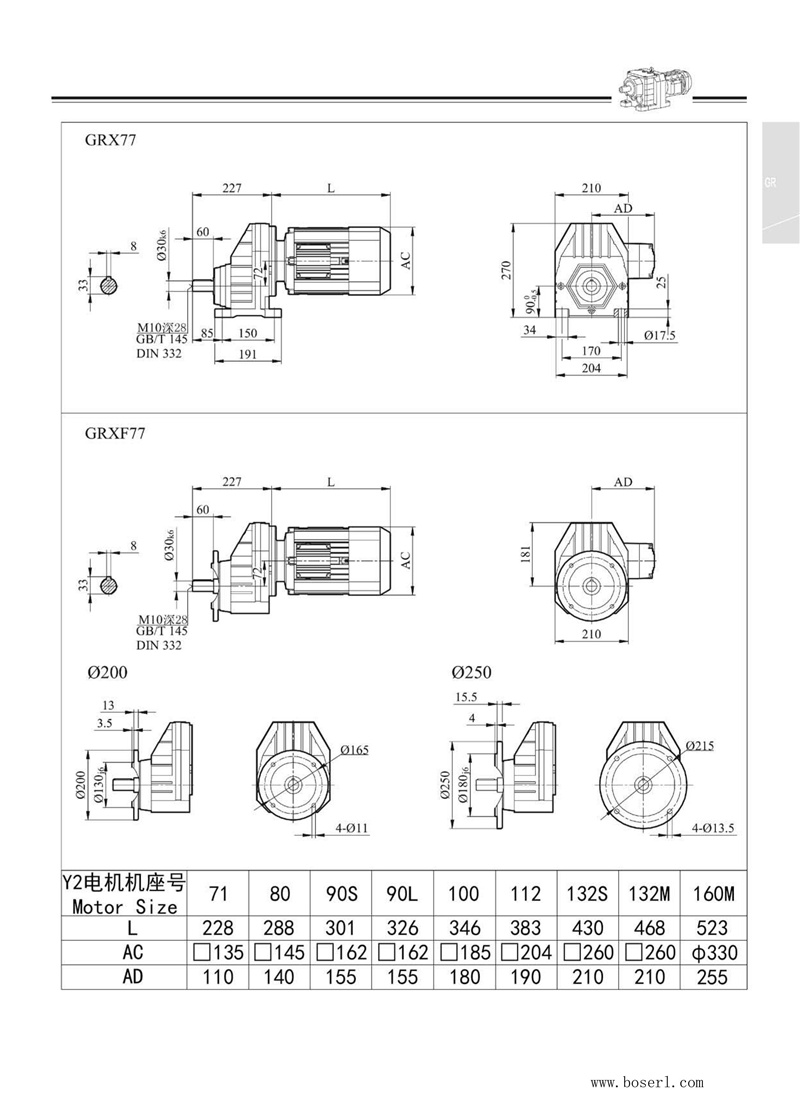

RXF78減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）三相齒輪減速機
RXF78立式斜齒輪硬齒面減速機型號：

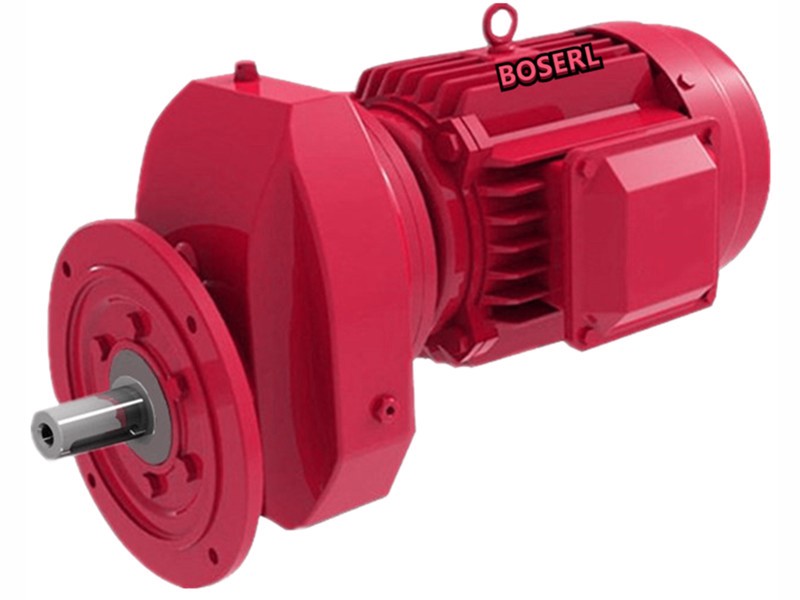

RXF78減速電機型號參數：同軸斜齒輪減速電機
RXF78減速機配0.18KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y0.18KW | 195.24 | 0.18KW | 42kg | 12900N |
| RXF78-Y0.18KW | 166.59 | 0.18KW | 42kg | 13000N |
| RXF78-Y0.18KW | 145.67 | 0.18KW | 42kg | 13000N |
| RXF78-Y0.18KW | 138.39 | 0.18KW | 42kg | 13000N |
RXF78減速機配0.25KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y0.25KW | 195.24 | 0.25KW | 46kg | 12600N |
| RXF78-Y0.25KW | 166.59 | 0.25KW | 46kg | 12800N |
| RXF78-Y0.25KW | 145.67 | 0.25KW | 46kg | 12900N |
| RXF78-Y0.25KW | 138.39 | 0.25KW | 46kg | 12900N |
| RXF78-Y0.25KW | 121.42 | 0.25KW | 46kg | 13000N |
RXF78減速機配0.37KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y0.37KW | 195.24 | 0.37KW | 46.5kg | 12100N |
| RXF78-Y0.37KW | 166.59 | 0.37KW | 46.5kg | 12400N |
| RXF78-Y0.37KW | 145.67 | 0.37KW | 46.5kg | 12600N |
| RXF78-Y0.37KW | 138.39 | 0.37KW | 46.5kg | 12600N |
| RXF78-Y0.37KW | 121.42 | 0.37KW | 46.5kg | 12800N |
| RXF78-Y0.37KW | 102.99 | 0.37KW | 46.5kg | 12900N |
| RXF78-Y0.37KW | 92.97 | 0.37KW | 46.5kg | 12900N |
RXF78減速機配0.55KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y0.55KW | 166.59 | 0.55KW | 51kg | 11400N |
| RXF78-Y0.55KW | 145.67 | 0.55KW | 51kg | 11800N |
| RXF78-Y0.55KW | 138.39 | 0.55KW | 51kg | 12000N |
| RXF78-Y0.55KW | 121.42 | 0.55KW | 51kg | 12200N |
| RXF78-Y0.55KW | 102.99 | 0.55KW | 51kg | 12500N |
| RXF78-Y0.55KW | 92.97 | 0.55KW | 51kg | 12600N |
| RXF78-Y0.55KW | 81.8 | 0.55KW | 51kg | 12800N |
| RXF78-Y0.55KW | 77.24 | 0.55KW | 51kg | 12800N |
| RXF78-Y0.55KW | 65.77 | 0.55KW | 51kg | 12900N |
RXF78減速機配0.75KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y0.75KW | 166.59 | 0.75KW | 52kg | 9810N |
| RXF78-Y0.75KW | 145.67 | 0.75KW | 52kg | 10700N |
| RXF78-Y0.75KW | 138.39 | 0.75KW | 52kg | 11000N |
| RXF78-Y0.75KW | 121.42 | 0.75KW | 52kg | 11500N |
| RXF78-Y0.75KW | 102.99 | 0.75KW | 52kg | 12000N |
| RXF78-Y0.75KW | 92.97 | 0.75KW | 52kg | 12200N |
| RXF78-Y0.75KW | 81.8 | 0.75KW | 52kg | 12500N |
| RXF78-Y0.75KW | 77.24 | 0.75KW | 52kg | 12500N |
| RXF78-Y0.75KW | 65.77 | 0.75KW | 52kg | 12700N |
| RXF78-Y0.75KW | 57.68 | 0.75KW | 52kg | 12800N |
| RXF78-Y0.75KW | 52.07 | 0.75KW | 52kg | 12900N |
| RXF78-Y0.75KW | 45.81 | 0.75KW | 52kg | 13000N |
| RXF78-Y0.75KW | 43.26 | 0.75KW | 52kg | 13000N |
RXF78減速機配1.1KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y1.1KW | 121.42 | 1.1KW | 56kg | 9130N |
| RXF78-Y1.1KW | 102.99 | 1.1KW | 56kg | 10400N |
| RXF78-Y1.1KW | 92.97 | 1.1KW | 56kg | 11000N |
| RXF78-Y1.1KW | 81.8 | 1.1KW | 56kg | 11500N |
| RXF78-Y1.1KW | 77.24 | 1.1KW | 56kg | 11700N |
| RXF78-Y1.1KW | 65.77 | 1.1KW | 56kg | 12100N |
| RXF78-Y1.1KW | 57.68 | 1.1KW | 56kg | 12400N |
| RXF78-Y1.1KW | 52.07 | 1.1KW | 56kg | 12500N |
| RXF78-Y1.1KW | 45.81 | 1.1KW | 56kg | 12700N |
| RXF78-Y1.1KW | 43.26 | 1.1KW | 56kg | 12700N |
| RXF78-Y1.1KW | 36.83 | 1.1KW | 56kg | 12900N |
| RXF78-Y1.1KW | 33.47 | 1.1KW | 56kg | 12900N |
RXF78減速機配1.5KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y1.5KW | 92.97 | 1.5KW | 59kg | 8750N |
| RXF78-Y1.5KW | 81.80 | 1.5KW | 59kg | 9930N |
| RXF78-Y1.5KW | 77.24 | 1.5KW | 59kg | 10300N |
| RXF78-Y1.5KW | 65.77 | 1.5KW | 59kg | 11200N |
| RXF78-Y1.5KW | 57.68 | 1.5KW | 59kg | 11700N |
| RXF78-Y1.5KW | 52.07 | 1.5KW | 59kg | 12000N |
| RXF78-Y1.5KW | 45.81 | 1.5KW | 59kg | 12300N |
| RXF78-Y1.5KW | 43.26 | 1.5KW | 59kg | 12400N |
| RXF78-Y1.5KW | 36.83 | 1.5KW | 59kg | 12600N |
| RXF78-Y1.5KW | 33.47 | 1.5KW | 59kg | 12700N |
| RXF78-Y1.5KW | 29.00 | 1.5KW | 59kg | 12500N |
| RXF78-Y1.5KW | 25.23 | 1.5KW | 59kg | 12000N |
| RXF78-Y1.5KW | 23.37 | 1.5KW | 59kg | 11700N |
| RXF78-Y1.5KW | 21.43 | 1.5KW | 59kg | 11400N |
| RXF78-Y1.5KW | 18.80 | 1.5KW | 59kg | 11000N |
RXF78減速機配2.2KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y2.2KW | 65.77 | 2.2KW | 68kg | 6520N |
| RXF78-Y2.2KW | 57.68 | 2.2KW | 68kg | 9630N |
| RXF78-Y2.2KW | 52.07 | 2.2KW | 68kg | 10400N |
| RXF78-Y2.2KW | 45.81 | 2.2KW | 68kg | 11100N |
| RXF78-Y2.2KW | 43.26 | 2.2KW | 68kg | 11300N |
| RXF78-Y2.2KW | 36.83 | 2.2KW | 68kg | 11900N |
| RXF78-Y2.2KW | 33.47 | 2.2KW | 68kg | 12100N |
| RXF78-Y2.2KW | 29.00 | 2.2KW | 68kg | 12100N |
| RXF78-Y2.2KW | 25.23 | 2.2KW | 68kg | 11600N |
| RXF78-Y2.2KW | 23.37 | 2.2KW | 68kg | 11400N |
| RXF78-Y2.2KW | 21.43 | 2.2KW | 68kg | 11100N |
| RXF78-Y2.2KW | 18.80 | 2.2KW | 68kg | 10700N |
| RXF78-Y2.2KW | 17.82 | 2.2KW | 68kg | 10600N |
| RXF78-Y2.2KW | 15.60 | 2.2KW | 68kg | 10200N |
| RXF78-Y2.2KW | 14.05 | 2.2KW | 68kg | 9880N |
RXF78減速機配3KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y3KW | 45.81 | 3KW | 71kg | 9090N |
| RXF78-Y3KW | 43.26 | 3KW | 71kg | 9620N |
| RXF78-Y3KW | 36.83 | 3KW | 71kg | 10700N |
| RXF78-Y3KW | 33.47 | 3KW | 71kg | 11200N |
| RXF78-Y3KW | 29.00 | 3KW | 71kg | 11600N |
| RXF78-Y3KW | 25.23 | 3KW | 71kg | 11200N |
| RXF78-Y3KW | 23.37 | 3KW | 71kg | 11000N |
| RXF78-Y3KW | 21.43 | 3KW | 71kg | 10700N |
| RXF78-Y3KW | 18.80 | 3KW | 71kg | 10400N |
| RXF78-Y3KW | 17.82 | 3KW | 71kg | 10200N |
| RXF78-Y3KW | 15.60 | 3KW | 71kg | 9880N |
| RXF78-Y3KW | 14.05 | 3KW | 71kg | 9600N |
| RXF78-Y3KW | 12.33 | 3KW | 71kg | 9250N |
| RXF78-Y3KW | 10.88 | 3KW | 71kg | 8930N |
| RXF78-Y3KW | 9.64 | 3KW | 71kg | 8630N |
| RXF78-Y3KW | 8.59 | 3KW | 71kg | 8400N |
| RXF78-Y3KW | 7.74 | 3KW | 71kg | 8150N |
| RXF78-Y3KW | 6.79 | 3KW | 71kg | 7830N |
RXF78減速機配4KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y4KW | 36.83 | 4KW | 82kg | 7040N |
| RXF78-Y4KW | 33.47 | 4KW | 82kg | 9370N |
| RXF78-Y4KW | 29.00 | 4KW | 82kg | 10500N |
| RXF78-Y4KW | 25.23 | 4KW | 82kg | 10700N |
| RXF78-Y4KW | 23.37 | 4KW | 82kg | 10500N |
| RXF78-Y4KW | 21.43 | 4KW | 82kg | 10300N |
| RXF78-Y4KW | 18.80 | 4KW | 82kg | 10000N |
| RXF78-Y4KW | 17.82 | 4KW | 82kg | 9880N |
| RXF78-Y4KW | 15.60 | 4KW | 82kg | 9560N |
| RXF78-Y4KW | 14.05 | 4KW | 82kg | 9320N |
| RXF78-Y4KW | 12.33 | 4KW | 82kg | 9010N |
| RXF78-Y4KW | 10.88 | 4KW | 82kg | 8710N |
| RXF78-Y4KW | 9.64 | 4KW | 82kg | 8430N |
| RXF78-Y4KW | 8.59 | 4KW | 82kg | 8250N |
| RXF78-Y4KW | 7.74 | 4KW | 82kg | 8010N |
| RXF78-Y4KW | 6.79 | 4KW | 82kg | 7710N |
| RXF78-Y4KW | 5.99 | 4KW | 82kg | 7430N |
| RXF78-Y4KW | 5.31 | 4KW | 82kg | 7160N |
RXF78減速機配5.5KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y5.5KW | 18.80 | 5.5KW | 96kg | 9300N |
| RXF78-Y5.5KW | 17.82 | 5.5KW | 96kg | 9370N |
| RXF78-Y5.5KW | 15.60 | 5.5KW | 96kg | 9120N |
| RXF78-Y5.5KW | 14.05 | 5.5KW | 96kg | 8920N |
| RXF78-Y5.5KW | 12.33 | 5.5KW | 96kg | 8650N |
| RXF78-Y5.5KW | 10.88 | 5.5KW | 96kg | 8400N |
| RXF78-Y5.5KW | 9.64 | 5.5KW | 96kg | 8160N |
| RXF78-Y5.5KW | 8.59 | 5.5KW | 96kg | 8040N |
| RXF78-Y5.5KW | 7.74 | 5.5KW | 96kg | 7820N |
| RXF78-Y5.5KW | 6.79 | 5.5KW | 96kg | 7540N |
| RXF78-Y5.5KW | 5.99 | 5.5KW | 96kg | 7280N |
| RXF78-Y5.5KW | 5.31 | 5.5KW | 96kg | 7040N |
RXF78減速機配7.5KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y7.5KW | 18.80 | 7.5KW | 109kg | 5530N |
| RXF78-Y7.5KW | 17.82 | 7.5KW | 109kg | 5920N |
| RXF78-Y7.5KW | 15.60 | 7.5KW | 109kg | 6770N |
| RXF78-Y7.5KW | 14.05 | 7.5KW | 109kg | 7310N |
| RXF78-Y7.5KW | 12.33 | 7.5KW | 109kg | 7850N |
| RXF78-Y7.5KW | 10.88 | 7.5KW | 109kg | 7960N |
| RXF78-Y7.5KW | 9.64 | 7.5KW | 109kg | 7770N |
| RXF78-Y7.5KW | 8.59 | 7.5KW | 109kg | 7690N |
| RXF78-Y7.5KW | 7.74 | 7.5KW | 109kg | 7540N |
| RXF78-Y7.5KW | 6.79 | 7.5KW | 109kg | 7290N |
| RXF78-Y7.5KW | 5.99 | 7.5KW | 109kg | 7060N |
| RXF78-Y7.5KW | 5.31 | 7.5KW | 109kg | 6840N |
RXF78減速機配11KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| RXF78-Y11KW | 10.88 | 11KW | 151kg | 4410N |
| RXF78-Y11KW | 9.64 | 11KW | 151kg | 5130N |
| RXF78-Y11KW | 7.74 | 11KW | 151kg | 4750N |
| RXF78-Y11KW | 6.79 | 11KW | 151kg | 5350N |
| RXF78-Y11KW | 5.99 | 11KW | 151kg | 5800N |
| RXF78-Y11KW | 5.31 | 11KW | 151kg | 6150N |
RXF78減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R78減速機
關鍵詞:GRXF向減速電機一體式_硬齒面減速機配電機_RXF系列減速器_RXF系列減速機_GRXF系列減速機_齒輪減速器_硬齒面齒輪減速機_三相齒輪減速電機_RXF型減速機_三相齒輪減速機
RXF系列齒輪減速馬達型號：RXF58減速機,RXF68減速機,RXF78減速機,RXF88減速機,RXF98減速機,RXF108減速機
RXF系列同軸斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RXF78減速電機 RXF77立式斜齒輪硬齒面減速機 RXF77減速機功率 RXF77減速機基座尺寸 RXF77減速機模型 RXF77減速機型號參數
