KAF158減速機詳細信息

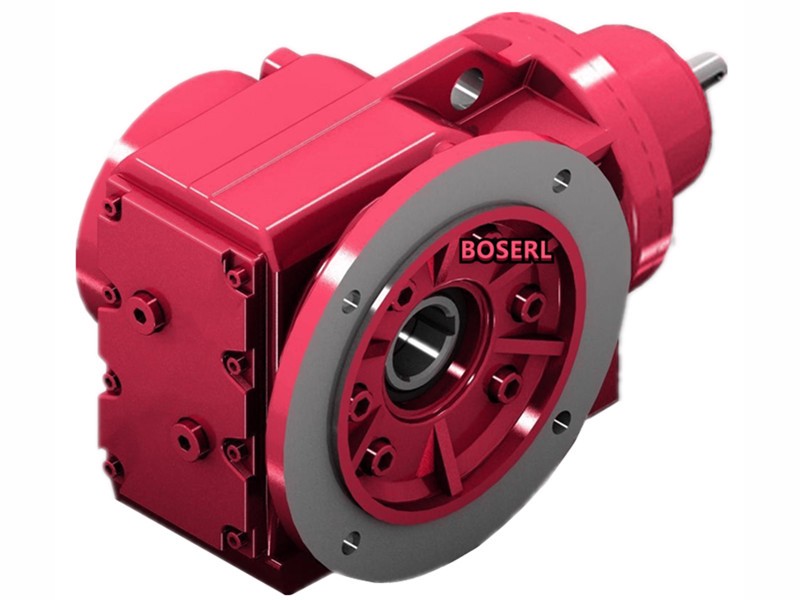

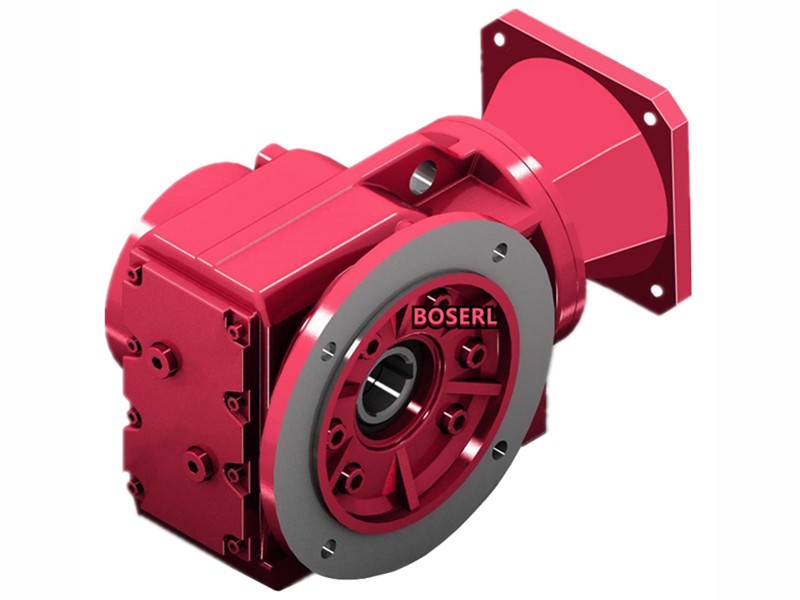

KAF158減速機
訂購熱線：13360667204
KAF158減速機選型計算：齒輪減速馬達
粉末攪拌設備參數：攪拌粉末重量3.4噸，攪拌33圈/一分鐘，攪動輪子直徑131
電機轉數1400÷33圈（輸出轉速）=減速比42.42
攪拌3.4噸粉末=33320N
33320N×0.0655攪動輪子半徑=2182.46×2攪拌粉末物料扭矩放大兩倍=4364.92N.m
4364.92N.m÷42.42減速比=102.9N.m電機扭矩
102.9N.m電機扭矩?fù)Q算成功率16.33KW以上
對應的KAF158減速機選型參數：
型號：KAF158-BVPEJ18.5KW
減速比：46.79
輸出轉數：31轉每分鐘
輸出扭矩：5640N.m
安全系數：3.2
KAF158減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）二級減速機
KAF158螺旋傘齒輪減速機型號：
KAF158系列減速機參數大全：直角減速機
KAF158減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y11KW | 11KW | 9.7rpm | 10800N.m | 1.65 |
| K157Y11KW | 11KW | 12rpm | 8800N.m | 2 |
| K157Y11KW | 11KW | 15rpm | 7210N.m | 2.5 |
| K157Y11KW | 11KW | 16rpm | 6590N.m | 2.7 |
KAF158減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y15KW | 15KW | 9.7rpm | 14800N.m | 1.2 |
| K157Y15KW | 15KW | 12rpm | 12000N.m | 1.5 |
| K157Y15KW | 15KW | 15rpm | 9830N.m | 1.85 |
| K157Y15KW | 15KW | 16rpm | 8990N.m | 2 |
| K157Y15KW | 15KW | 18rpm | 7820N.m | 2.3 |
KAF158減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y18.5KW | 18.5KW | 12rpm | 14800N.m | 1.2 |
| K157Y18.5KW | 18.5KW | 15rpm | 12100N.m | 1.5 |
| K157Y18.5KW | 18.5KW | 16rpm | 11000N.m | 1.6 |
| K157Y18.5KW | 18.5KW | 18rpm | 9650N.m | 1.85 |
| K157Y18.5KW | 18.5KW | 21rpm | 8510N.m | 2.1 |
| K157Y18.5KW | 18.5KW | 24rpm | 7380N.m | 2.4 |
| K157Y18.5KW | 18.5KW | 27rpm | 6560N.m | 2.7 |
| K157Y18.5KW | 18.5KW | 31rpm | 5660N.m | 3.2 |
| K157Y18.5KW | 18.5KW | 38rpm | 4600N.m | 3.9 |
KAF158減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y22KW | 22KW | 12rpm | 17600N.m | 1 |
| K157Y22KW | 22KW | 15rpm | 14400N.m | 1.25 |
| K157Y22KW | 22KW | 16rpm | 13100N.m | 1.35 |
| K157Y22KW | 22KW | 18rpm | 11400N.m | 1.55 |
| K157Y22KW | 22KW | 21rpm | 10100N.m | 1.8 |
| K157Y22KW | 22KW | 24rpm | 8780N.m | 2 |
| K157Y22KW | 22KW | 27rpm | 7810N.m | 2.3 |
| K157Y22KW | 22KW | 31rpm | 6730N.m | 2.7 |
| K157Y22KW | 22KW | 38rpm | 5470N.m | 3.3 |
KAF158減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y30KW | 30KW | 15rpm | 19500N.m | 0.9 |
| K157Y30KW | 30KW | 16rpm | 17800N.m | 1 |
| K157Y30KW | 30KW | 18rpm | 15500N.m | 1.15 |
| K157Y30KW | 30KW | 21rpm | 13700N.m | 1.3 |
| K157Y30KW | 30KW | 24rpm | 11900N.m | 1.5 |
| K157Y30KW | 30KW | 27rpm | 10500N.m | 1.7 |
| K157Y30KW | 30KW | 32rpm | 9090N.m | 2 |
| K157Y30KW | 30KW | 39rpm | 7380N.m | 2.4 |
| K157Y30KW | 30KW | 47rpm | 6080N.m | 3 |
KAF158減速機配37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y37KW | 37KW | 16rpm | 22000N.m | 0.8 |
| K157Y37KW | 37KW | 18rpm | 19100N.m | 0.95 |
| K157Y37KW | 37KW | 21rpm | 16900N.m | 1.05 |
| K157Y37KW | 37KW | 24rpm | 14600N.m | 1.25 |
| K157Y37KW | 37KW | 27rpm | 13000N.m | 1.4 |
| K157Y37KW | 37KW | 32rpm | 11200N.m | 1.6 |
| K157Y37KW | 37KW | 39rpm | 9130N.m | 1.95 |
| K157Y37KW | 37KW | 47rpm | 7520N.m | 2.4 |
KAF158減速機配45KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y45KW | 45KW | 21rpm | 20400N.m | 0.9 |
| K157Y45KW | 45KW | 24rpm | 17700N.m | 1 |
| K157Y45KW | 45KW | 27rpm | 15700N.m | 1.15 |
| K157Y45KW | 45KW | 32rpm | 13500N.m | 1.3 |
| K157Y45KW | 45KW | 39rpm | 11000N.m | 1.65 |
| K157Y45KW | 45KW | 47rpm | 9080N.m | 2 |
| K157Y45KW | 45KW | 54rpm | 8020N.m | 2.2 |
| K157Y45KW | 45KW | 62rpm | 6950N.m | 2.6 |
| K157Y45KW | 45KW | 69rpm | 6180N.m | 2.9 |
| K157Y45KW | 45KW | 81rpm | 5330N.m | 3.4 |
KAF158減速機配55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y55KW | 55KW | 24rpm | 21700N.m | 0.85 |
| K157Y55KW | 55KW | 27rpm | 19300N.m | 0.95 |
| K157Y55KW | 55KW | 32rpm | 16600N.m | 1.1 |
| K157Y55KW | 55KW | 39rpm | 13500N.m | 1.35 |
| K157Y55KW | 55KW | 47rpm | 11100N.m | 1.6 |
| K157Y55KW | 55KW | 53rpm | 9830N.m | 1.85 |
| K157Y55KW | 55KW | 62rpm | 8520N.m | 2.1 |
| K157Y55KW | 55KW | 69rpm | 7580N.m | 2.4 |
| K157Y55KW | 55KW | 80rpm | 6530N.m | 2.8 |
| K157Y55KW | 55KW | 99rpm | 5310N.m | 3.4 |
| K157Y55KW | 55KW | 117rpm | 4500N.m | 3.8 |
KAF158減速機配75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y75KW | 75KW | 39rpm | 18300N.m | 1 |
| K157Y75KW | 75KW | 47rpm | 15100N.m | 1.2 |
| K157Y75KW | 75KW | 54rpm | 13300N.m | 1.35 |
| K157Y75KW | 75KW | 62rpm | 11500N.m | 1.55 |
| K157Y75KW | 75KW | 69rpm | 10300N.m | 1.75 |
| K157Y75KW | 75KW | 81rpm | 8880N.m | 2 |
| K157Y75KW | 75KW | 99rpm | 7220N.m | 2.5 |
| K157Y75KW | 75KW | 117rpm | 6120N.m | 2.8 |
KAF158減速機配90KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y90KW | 90KW | 39rpm | 22000N.m | 0.8 |
| K157Y90KW | 90KW | 62rpm | 13900N.m | 1.3 |
| K157Y90KW | 90KW | 69rpm | 12300N.m | 1.45 |
| K157Y90KW | 90KW | 81rpm | 10600N.m | 1.7 |
| K157Y90KW | 90KW | 99rpm | 8660N.m | 2.1 |
| K157Y90KW | 90KW | 117rpm | 7340N.m | 2.3 |
KAF158減速機配110KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y110KW | 110KW | 62rpm | 16900N.m | 1.05 |
| K157Y110KW | 110KW | 70rpm | 15000N.m | 1.2 |
| K157Y110KW | 110KW | 81rpm | 13000N.m | 1.4 |
| K157Y110KW | 110KW | 99rpm | 10500N.m | 1.7 |
| K157Y110KW | 110KW | 117rpm | 8960N.m | 1.9 |
KAF158減速機配132KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y132KW | 132KW | 62rpm | 20300N.m | 0.9 |
| K157Y132KW | 132KW | 70rpm | 18000N.m | 1 |
| K157Y132KW | 132KW | 81rpm | 15500N.m | 1.15 |
| K157Y132KW | 132KW | 100rpm | 12600N.m | 1.4 |
| K157Y132KW | 132KW | 117rpm | 10700N.m | 1.6 |
KAF158減速機配160KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y160KW | 160KW | 81rpm | 18900N.m | 0.95 |
| K157Y160KW | 160KW | 99rpm | 15300N.m | 1.15 |
| K157Y160KW | 160KW | 117rpm | 13000N.m | 1.3 |
KAF158減速機配200KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K157Y200KW | 200KW | 99rpm | 19200N.m | 0.95 |
| K157Y200KW | 200KW | 117rpm | 16300N.m | 1.05 |
KAF158減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K158減速機
關鍵詞:三級減速機配電機一體式_三相異步減速電機_二級減速機_角向減速機_GKAF系列減速機_KAF系列減速機_KAF系列減速器_三相異步減速機_二級減速器_三級減速器
KAF系列齒輪減速馬達型號：KAF38減速機,KAF48減速機,KAF58減速機,KAF68減速機,KAF78減速機,KAF88減速機,KAF98減速機,KAF108減速機,KAF128減速機,KAF158減速機,KAF167減速機,KAF187減速機
KAF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KAF158減速機 KAF157螺旋傘齒輪減速機 KAF157系列減速機 KAF157減速機傳動比 KAF157減速機選型參數 KAF157減速機CAD三維圖
